Pi PAD Standard Deviation

This note looks at the amount of variation one can expect from a simple Pi Attenuator.

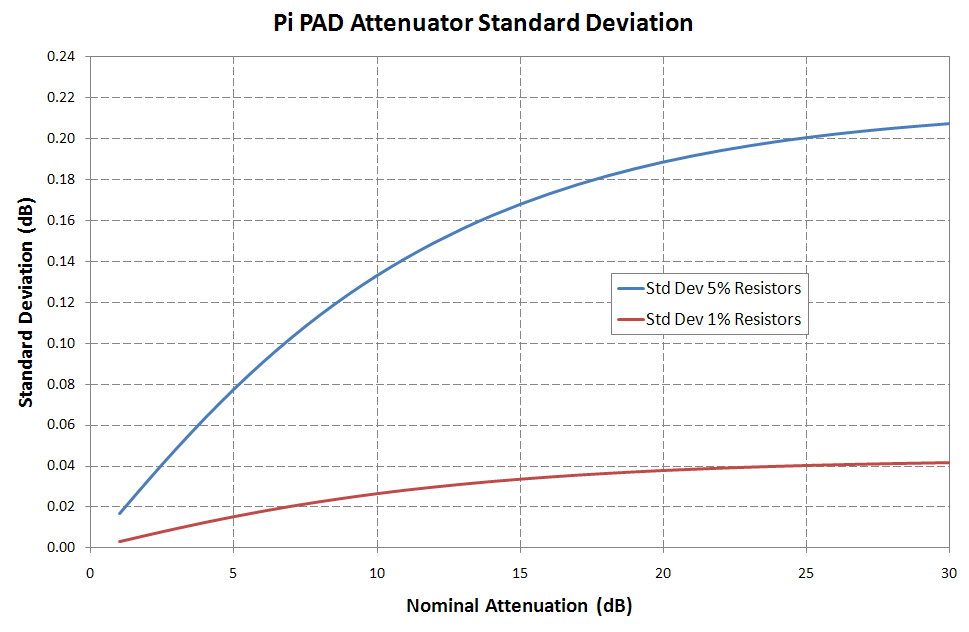

The calculation is performed for both 1% and 5% resistors. The data shows that the variation is minimal, however the sigmas are provided for use in lineup analysis if desired.
Click image for a larger view.
