VIA Inductance

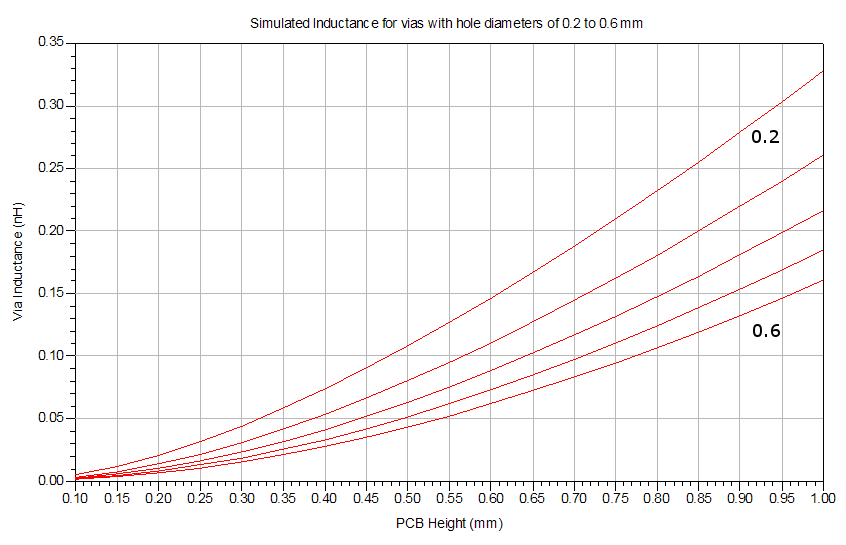

This note looks at the amount of inductance one can expect from a via. Two variables are swept in the simulation: Via Diameter and PCB Height.
This information for example, is useful when designing how to ground a transistor emitter or source to balance gain/stability etc.
Click image for a larger view.
