PA Efficiency

This note documents some PA efficiency curves from a few select prototype PA's. I reference this data at various times, a typical example is when planning a new design and need to calculate some power consumption estimates.

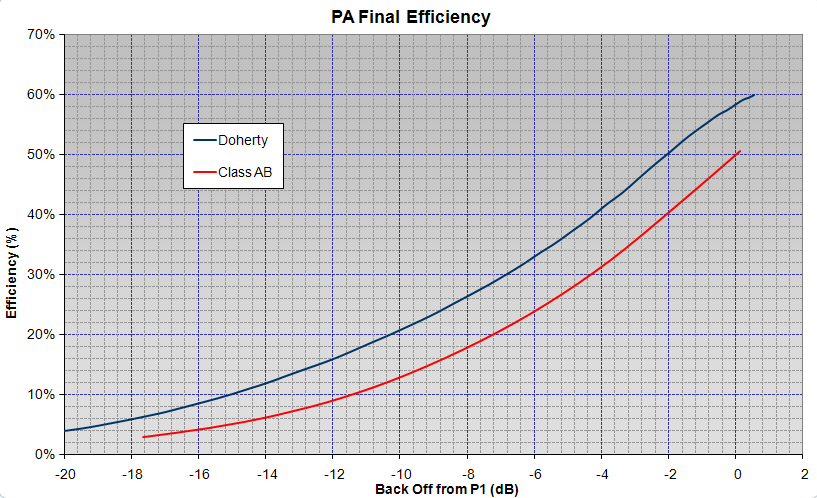

The figure below gives an overview of Class AB vs Doherty efficiency.
